Meridian MBase

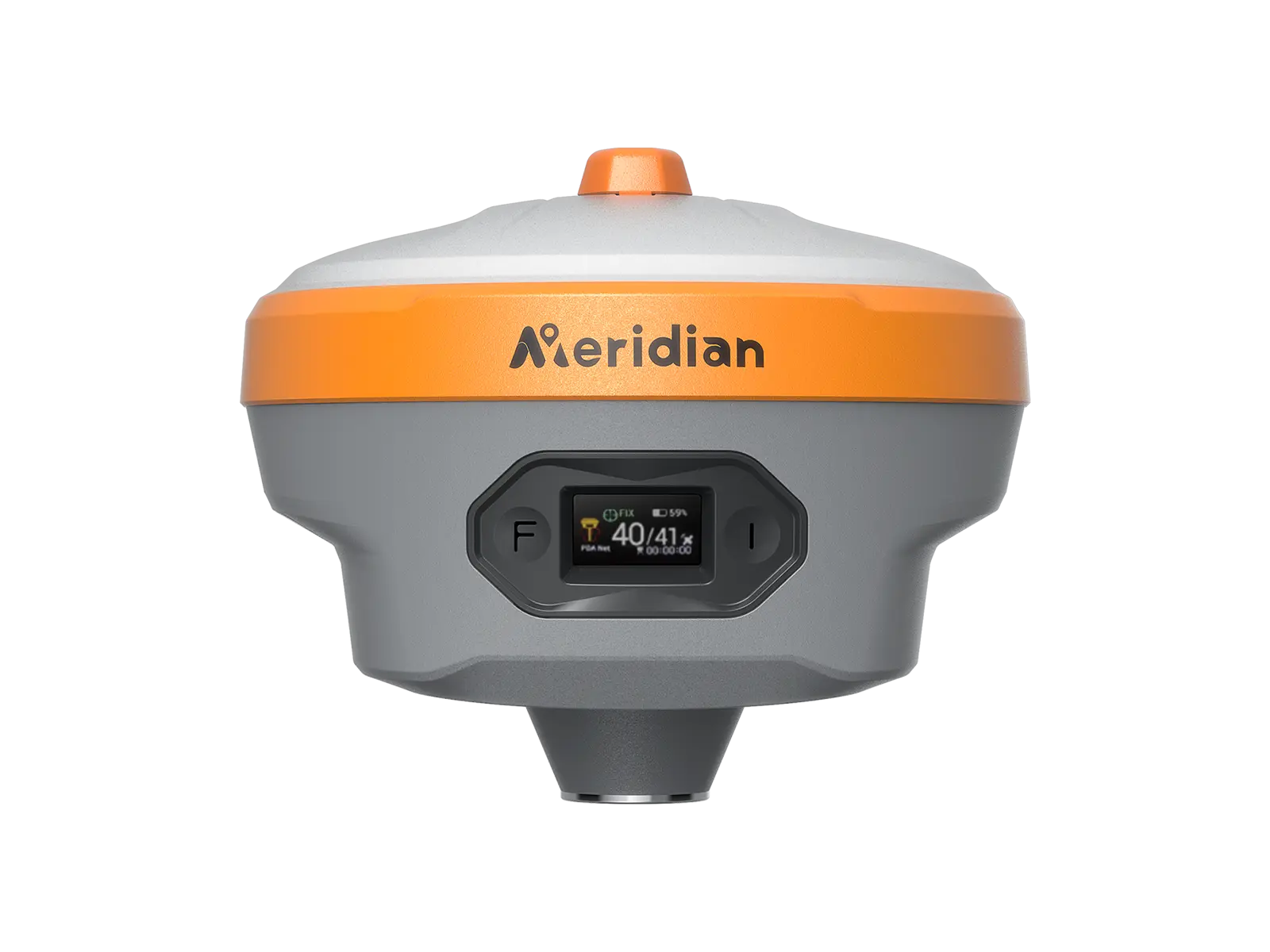

MBase High Performance Base Receiver

The MBase GNSS receiver is a fully integrated, professional-grade GNSS base station tailored to address 95% of surveyors’ requirements for UHF GNSS base and rover operations. It also has built-in 4G connectivity, Bluetooth, Wi-Fi, and a 5W data transmission radio, enabling high-speed data transfer and user-friendly WebUI, which improves efficiency and convenience. The MBase has a rugged design, making it suitable for outdoor and harsh environments. Equipped with a 5-watt radio module, it ensures reliable GNSS RTK coverage extending up to 35 kilometers under ideal conditions, makes MBase the perfect base station receiver.

Longer Working Distance

Equipped the MeridianLink protocol internal radio and upper radio antenna port, Mbase offers up to 35km working range and increases flexibility. By eliminating the need for an external radio, the MBase becomes more lightweight, less complex, and more portable, which can lead to increased efficiency and convenience in the field.

Highly Integrated Four-in-one Antenna

The highly integrated four-in-one antenna on the MBase provides several advantages, including saving space, improving performance and reliability, and reducing the failure rate during use, making Mbase more portable and easier to handle, increasing the efficiency and accuracy of measurements.

Lightweight, Compact & Rugged Design

MBase is an ideal solution for surveyors who require portability and durability in demanding field conditions and eliminates the need for heavy external radio and accessories, ensuring easy transport and quick setup. This combination of lightweight portability, compact form factor, and rugged durability makes it a versatile tool for professionals on the go.

Enhanced Tilt IMU

Equipped with calibration-free IMU, support up to 60° tilt angle within 2cm accuracy, and no limitation tilt angle, allows for quick and accurate measurements without leveling the pole. Concentrate on where the pole tip needs to go, which is especially useful during a stakeout.

Technical Specification

GNSS Signal
Channel	1408
BDS	B1I，B2I，B3I，B1C，B2a，B2b*
GPS	L1 C/A，L1C，L2P(Y)，L2C，L5
GLONASS	L1，L2，L3*
GALILEO	E1，E5a，E5b，E6*
QZSS	L1C/A, L1C, L2C, L5, L6*
SBAS	L1, L5*
NavIC(IRNSS)*	L5
L-band	B2b PPP (Only for the Asian-Pacific Region) & HAS*
Data Format
Format	CMR, CMR+, RTCM2.X, RTCM3.X
Data Output	NMEA-0183, RINEX, TXT
Data Updating Rate	Up to 20Hz
Time to Recapture	<1s
Cold Start	<40s
Positioning Performance
Single Point Positioning (RMS)	Horizontal: 1.5m \| Vertical: 3.0m
DGPS (RMS)	Horizontal: 0.4m \| Vertical: 0.8m
Real-Time Kinematic (RMS)	Horizontal: ±(8mm+1ppm) \| Vertical: ±(15mm+1ppm)
Speed Accuracy (RMS)	0.03m/s
Static Accuracy (RMS)	Horizontal: ±(2.5mm+0.5ppm) \| Vertical: ±(5mm+0.5ppm)
Time Accuracy (RMS)	20ns
Speed Accuracy	≥0.03m/s
Tilt Compensation Accuracy	≤2cm(Tilt Angle≤60°), no tilt angle limitation
IMU Update Frequency	200Hz
Communication
Bluetooth	V5.2 Dual Mode.2.4GHz@+5dBm
WiFi	IEEE 802.11 b/g/n
Cellular	LTE FDD:B1/3/5/7/8/20 LTE TDD:B38/40/41 UMTS/HSPA+:B1/8 GSM/GPRS/EDGE: 900/1800 MHz
Storage	32GB, Up to 64GB
Internal Radio	Transmitting power:5W, 2W,1W Frequency: 410~470MHz Protocol: SOUTH, TRIMTALK 450S, TRIMMK Ⅲ, TRANSEOT. SATEL, MERIDIANLINK Air Baud Rate: 9600, 19200, 11000
Battery
Specifications	7.2V，6600mAh lithium-ion Rechargeable Battery
Operating Times	RTK Rover: Up to 20 hours \| Static: Up to 35 hours
Charging	Support USB PD 15V/2A (Supports Quick Charging Adapter)
Environment
Operating Temperature	-40°C~+85°C
Storage Temperature	-55°C~+85°C
Anti-seismic	2m Pole Drop Onto Concrete
Dust & Waterproof	IP68
Control Panel
Display	0.96” OLED Display
LED Lamp	Signal, Power
Physical button	2
Physical
I/O Interface	1× USB type-C port; 1 × TNC antenna port; 1× SIM card slot; 1 × 5 pin LEMO port
Dimensions	133mm×133mm×84.5mm
Weight	900g
