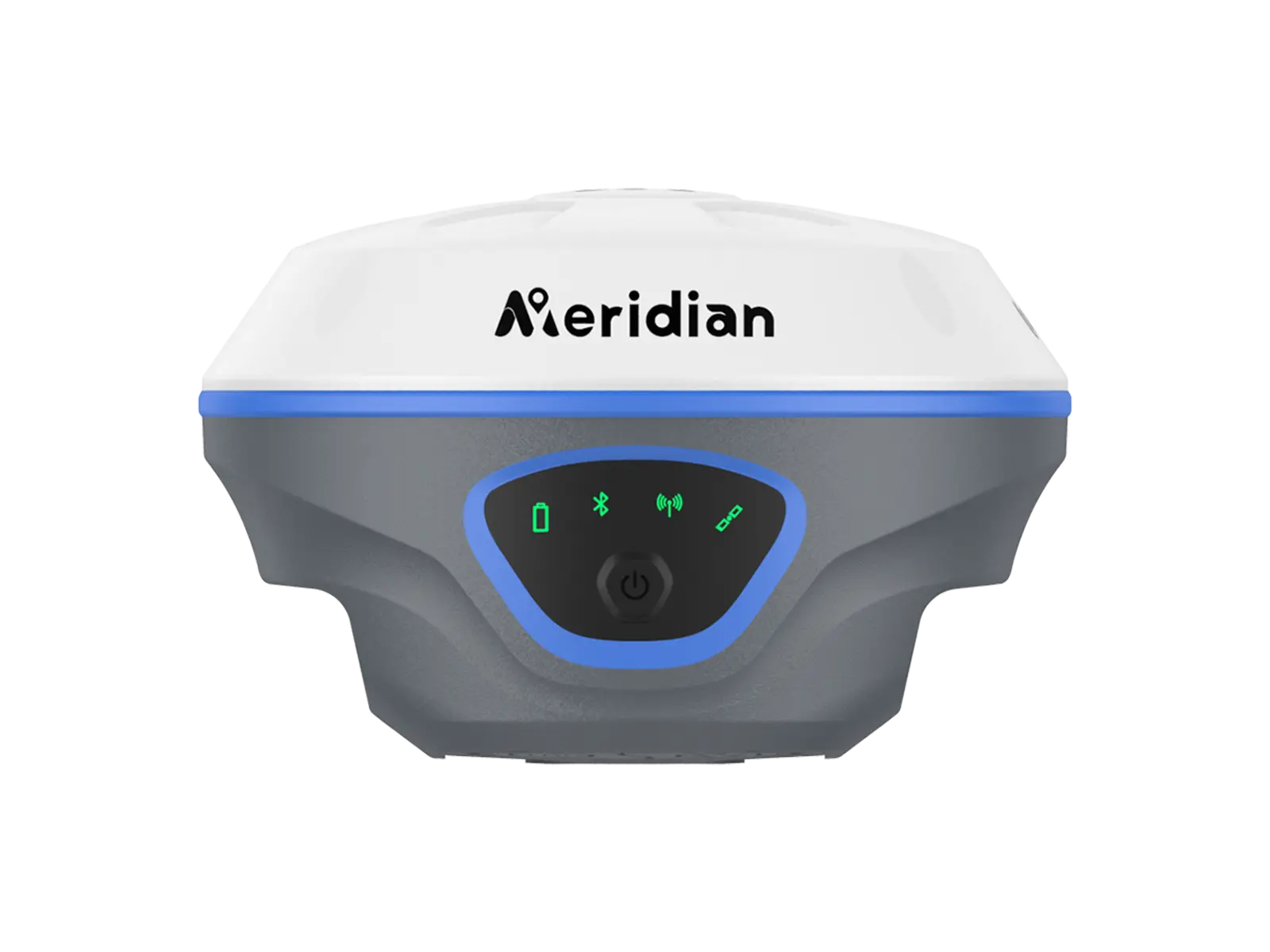

Meridian M6Plus GNSS receiver

M6Plus GNSS receiver is an extremely lightweight, full-featured, inteligent GNSS receiver system equipped with an integrated full-frequency antenna and advanced multi-channel RTK engine, built-in radio, and 32GB internal storage, allowing users to attain accurate, reliable solutions. Its powerful RTK algorithm makes M6Plus easy to get fixed solutions in the most demanding environments, brings you to focus on your surroundings and not the bubble to measure the points that previously could not be measured, making your stake out more efficiently and conveniently than ever before with increased speed, safety and comfort and greatly improving your working efficiency.

M6Plus provides an excellent onboard real-time navigation solution with high accuracy. Multi-satellite signals (GPS,GLONASS, BEIDOU, GALILEO, QZSS,IRNSS, L-Band) are included.

Powerful IMU Feature

Equipped with 120 ° calibration-free IMU technology in a small body, extending the M6Plus’s application range to locations that traditional RTK systems cannotreach, opening up new horizons for prod-uct applications.

4G Based solution

Equipped with 4G module, M6Plus offer a longer baseline working possibility.

Palm Size

The palm-sized RTK (Real-Time Kine-matic) system combines elegance with precision, offering a compact solution for accurate positioning on-the-go.

Powerful Battery

With 7.2V 7000mAh and the quick-charge capability, supports you in working more than 26hours and greatly saves your time.

Technical Specification

GNSS Signal
Channel	1408
BDS	B1I，B2I，B3I，B1C，B2a，B2b*
GPS	L1 C/A，L1C，L2P(Y)，L2C，L5
GLONASS	L1，L2，L3*
GALILEO	E1，E5a，E5b，E6*
QZSS	L1C/A, L1C, L2C, L5, L6*
SBAS	L1, L5*
NavIC(IRNSS)*	L5
L-band	B2b PPP (Only for the Asian-Pacific Region)& HAS*
Data Format	CMR, CMR+, RTCM2.X, RTCM3.X
Data Output	NMEA-0183, RINEX, TXT
Data Updating Rate	Up to 20Hz
Time to Recapture	<1s
Cold Start	<40s
Positioning Performance
Single Point Positioning (RMS)	Horizontal: 1.5m \| Vertical: 3.0m
DGPS (RMS)	Horizontal: 0.4m \| Vertical: 0.8m
Real-Time Kinematic (RMS)	Horizontal: ±(8mm+1ppm) Vertical: ±(15mm+1×10-6·D)
Speed Accuracy (RMS)	0.03m/s
Static Accuracy (RMS)	Horizontal: ± (2.5mm+0.5-6·D) Vertical: ± (5mm+0.5-6·D)
Time Accuracy (RMS)	20ns
Speed Accuracy	≥0.03m/s
Tilt Compensation Accuracy	≤2cm(Tilt Angle≤60°, Up to 120°)
IMU Update Frequency	200Hz
Communication
Bluetooth	SPP3.0+BLE5.0 Dual Mode, 2.4GHz@ +6 dBm
WiFi	802.11 a/b/g/n \| 5.0GHz
Cellular	LTE TDD: B34/38/39/40/41 LTE FDD: B1/3/5/7/8/20/28 WCDMA:B1/5/8 GSM:B850/900/1800
Storage	32GB
Internal Radio	Transmitting power: 2W(33+1dBm) 1W(30+1dBm) Frequency: 410~470MHz Protocol: SOUTH, TRIMTALK 450S, TRIMMK III, TRANSEOT,SATEL, MERIDIANLINK Air Baud Rate: 9600, 11000, 19200
Battery
Specifications	7.2V，7000mAh lithium-ion Rechargeable Battery
Operating Times	RTK Rover: Up to 28 hours (Typical Power Consumption) Static: Up to 40 hours (Typical Power Consumption)
Charging	Support USB PD 15V/2A (Supports Quick Charging Adapter)
Environment
Operating Temperature	-40°C~+85°C
Storage Temperature	-55°C~+85°C
Anti-seismic	2m Pole Drop Onto Concrete
Dust & waterproof	IP68
Physical
I/O Interface	1× USB type-C port; 1 × TNC antenna port; 1× SIM card slot; 1 × 5 pin LEMO port
Dimensions	125mm×125mm×79mm
Weight	≤699g
