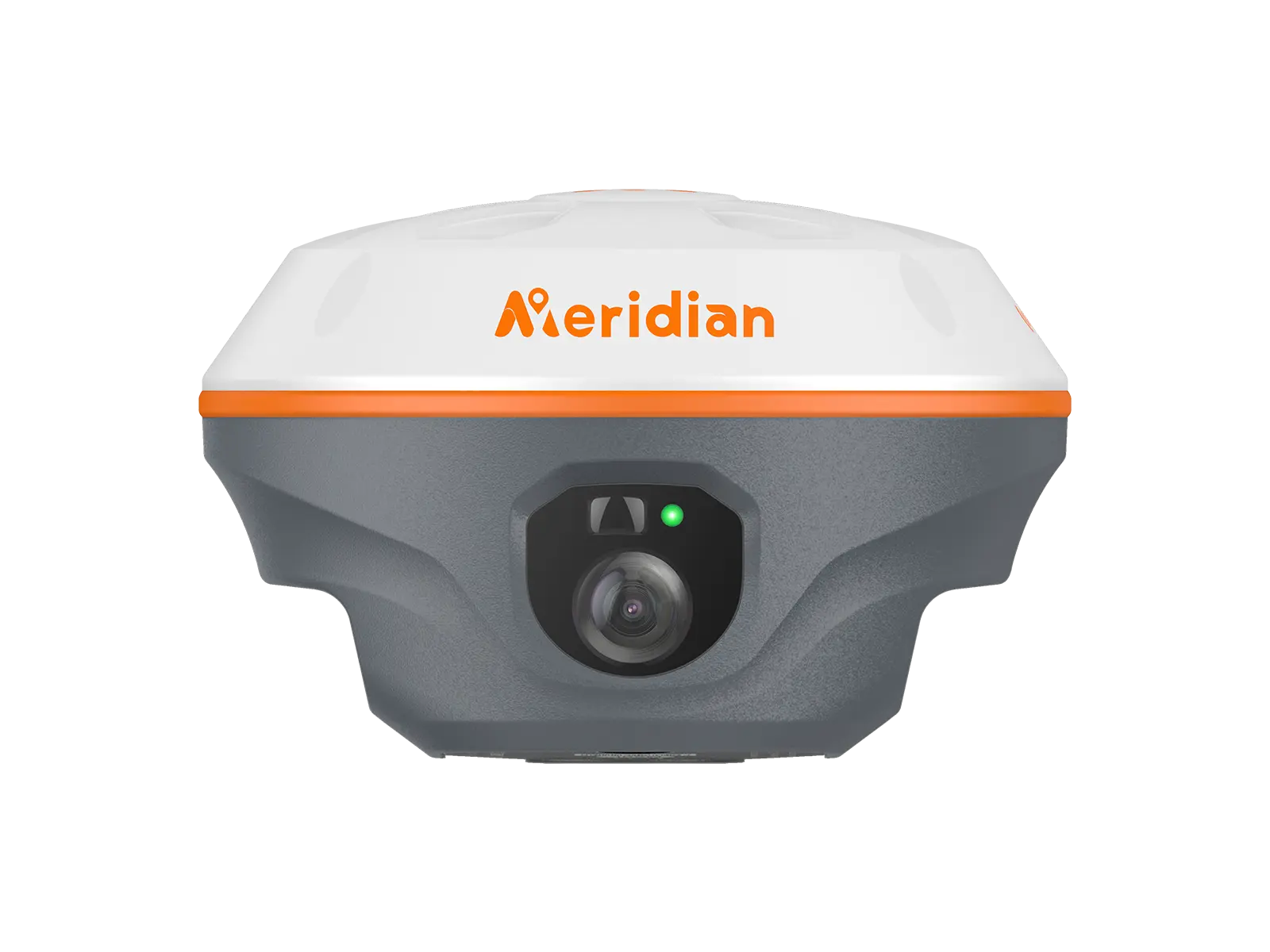

Meridian M27LV

Laser&Photogrammetry GNSS Receiver

The Meridian M27LV seamlessly combines high-precision laser measurement with an integrated high resolution camera, enabling a powerful Laser-Visual Fusion workflow. In complex field condi tions-such as bright sunlight, reflective surfaces, or long-distance targets-the camera functions as the system’s eye, delivering real-time visual feedback for accurate and confident targeting.

AR Stakeout

Visual positioning eases point finding by overlaying design files onto real scenes, enhancing stakeout efficiency,A high-performance HD camera achieves high accuracy with precise signal tracking. The 360-de-gree AR stakeout seamlessly switches between the handheld controller and rover, ensuring fast and accu-rate stakeout experiences

Calibration-Free Solution

Equipped with laser & 120° calibration-free IMU techno lo-gy in a small body, it complements the laser’s outstanding performance, extending the M27LV applica tion range to locations that traditional RTK systems cannot reach, open-ing up new horizons for product applications, enhancing customer satisfaction and boosting operational efficiency

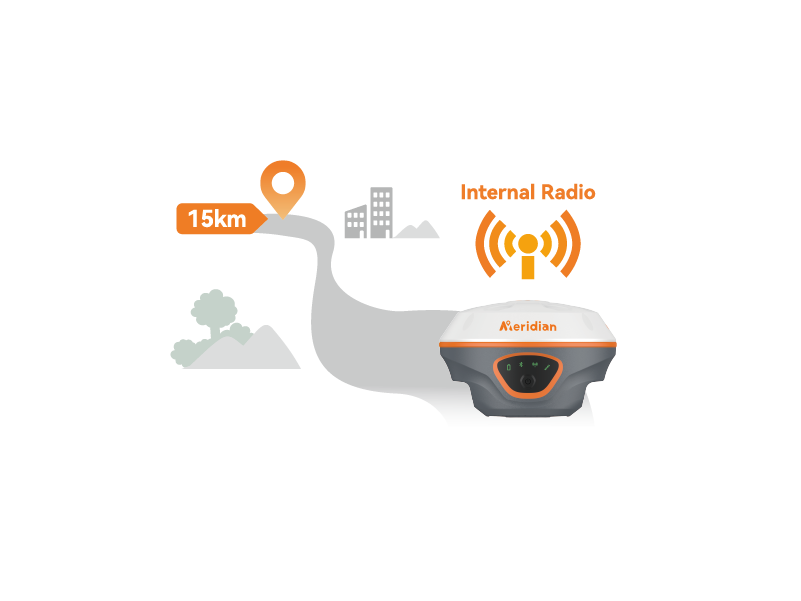

Longer Working Distance

Equipped the MeridianLink protocol internal radio offers 15km working range and increases flexibility. By eliminat ing the need for an external radio, the M27LV becomes more lightweight, less complex, and more portable, which can lead to increased efficiency and convenience in the field

Technical Specification

GNSS Signal②
Channel	1760
BDS	B1I，B2I，B3I，B1C，B2a，B2b*
GPS	L1 C/A，L1C，L2P(Y)，L2C，L5
GLONASS	L1，L2，L3*
GALILEO	E1，E5a，E5b，E6*
QZSS	L1C/A, L1C, L2C, L5, L6*
SBAS	L1, L5*
NavIC(IRNSS)*	L5
L-band	B2b PPP (Only for the Asian-Pacific Region)& HAS*
Data Format
Format	CMR, CMR+, RTCM2.X, RTCM3.X
Output	NMEA-0183, RINEX, TXT
Data Updating Rate	Up to 20Hz
Time to Recapture	<1s
Cold Start	<40s
Positioning Performance
Single Point Positioning (RMS)	Horizontal: 1.5m \| Vertical: 3.0m
DGPS (RMS)	Horizontal: 0.4m \| Vertical: 0.8m
Real-Time Kinematic (RMS)	Horizontal: ±(8mm+1ppm) \| Vertical: ±(15mm+1ppm)
Speed Accuracy (RMS)	0.03m/s
Static Accuracy (RMS)	Horizontal: ± (2.5mm+0.5ppm) \| Vertical: ± (5mm+0.5ppm)
Time Accuracy (RMS)	20ns
Speed Accuracy	≥0.03m/s
Tilt Compensation Accuracy	≤2cm(Tilt Angle≤60°, Up to 120°)
IMU Update Frequency	200Hz
Laser Accuracy (RMS)	Horizontal: ±(8mm+3mm/m) \| Vertical: ±(15mm+3mm/m)
Communication
Bluetooth	SPP3 0+BLE5 0 Dual Mode
WiFi	802.11 a/b/g/n/ac
Cellular	LTETDD:B38/39/40/41 LTE FDD:B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 WCDMA: B1/2/4/5/6/8/19 GSM: B2/3/5/8
Storage	32GB
Internal Radio	Transmitting Power: 2W(33±1dBm) 1W(30±1dBm) Frequency: 410~470MHz Protocol: SOUTH, TrimTalk 450S, TRANSEOT, TRIMMK III, MeridianLink Air Baud Rate: 9600, 11000,19200
Battery
Specifications	7.2V,6600mAh lithium-ion Rechargeable Battery
Operating Times	Laser RTK Rover: Up to 22 hours (Typical Power Consumption) Static: Up to 40 hours (Typical Power Consumption)
Charging	Support USB PD 15V/2A (Supports Quick Charging Adapter)
Environment
Operating Temperature	-40°C~+85°C
Storage Temperature	-55°C~+85°C
Anti-seismic	2m Pole Drop Onto Concrete
Dust & waterproof	IP68
Physical
AR Camera	5 MegaPixel, large viewing angle, supports live view stakeout
Laser Assisted Camera	5 MegaPixel ,supports Photogrammetry
I/O Interface	1× USB type-C port; 1 × TNC antenna port; 1× SIM card slot; 1 × 5 pin LEMO port
Dimensions	125mm×125mm×79mm
Weight	≤749g
