Meridian MTS-R1
Robotic Total Station
Fast Long-Range Lock, Reliable Precision
The Automatic Prism Recognition (APR) locates and measures prisms within a 1,200m line of sight, delivering a proven accuracy of up to 1mm at 100m even under tough conditions. Combined with Prism Search, it enables rapid and precise long-range targeting for efficient surveying.
DC Servo Motor & Smooth Positioning

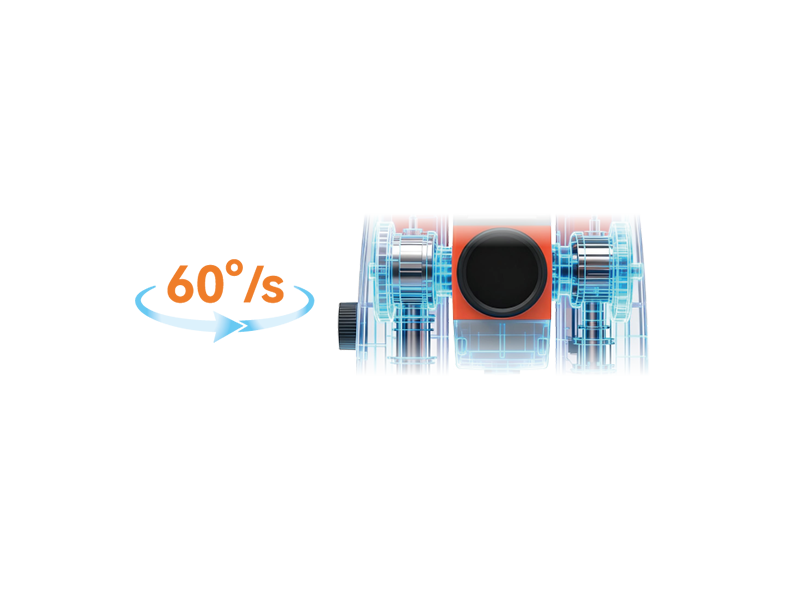

Powered by a high-speed DC Servo Motor (60°/sec) and a direct worm-and-gear drive, the system ensures stable, rapid target tracking with consistent angular accuracy under 1″ for efficient field operations.
Easy to Use,& Clear to See

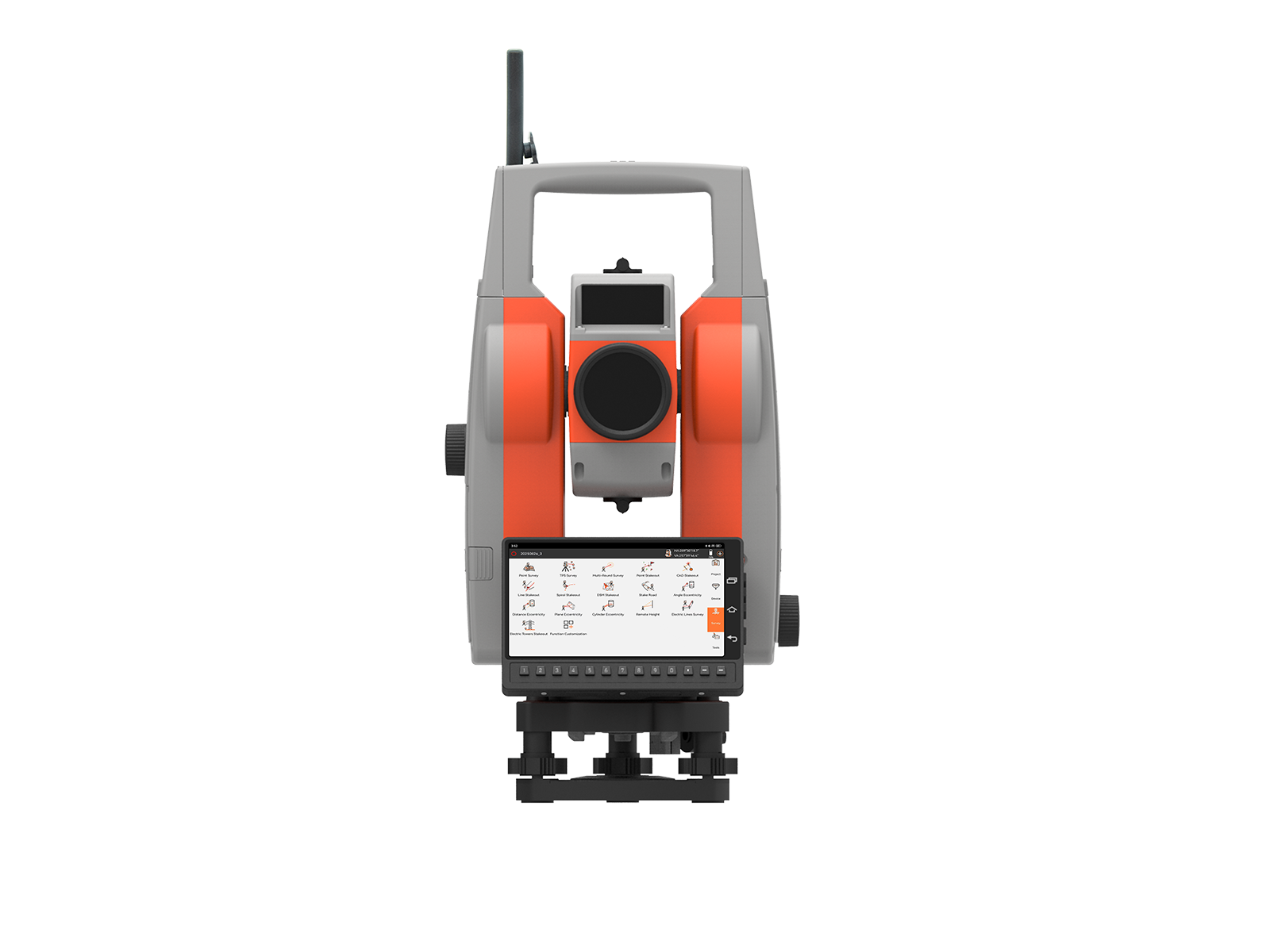

Navigate with a simple tap on high-definition dual 5.5-inch touchscreens. The telescope features 5-level reticle brightness for clear viewing from low light to direct sun.
True One-Person Operation

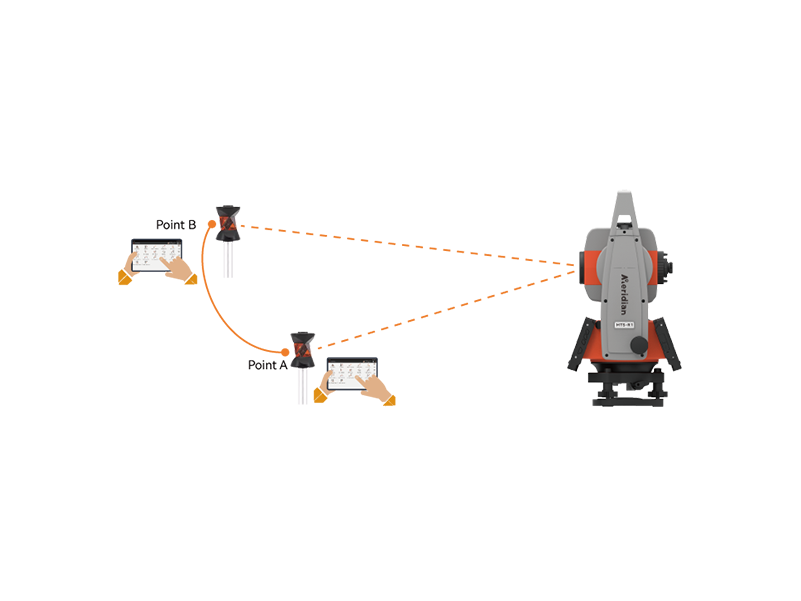

Maximize efficiency with a single surveyor. Utilize the long-range remote control and the integrated Prism Plus Position (PPP) mode to operate the MTS-R1 entirely from the prism pole, supported by automated Prism Search, LockNTRack, and APR functions.
M-survey Software Operation

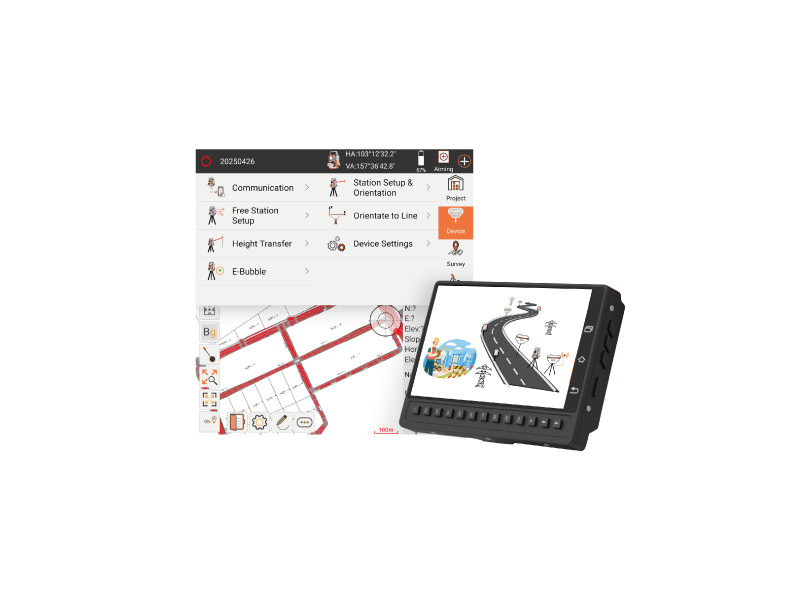

M-Survey is a professional surveying and stakeout software with a clean interface and fast learning curve, supporting TXT, DAT, DXF, and DWG formats with strong compatibility; CAD files can be directly imported for stakeout, and large files are handled smoothly to reduce human error and improve efficiency; the software supports online maps with real-time positioning, integrates common functions such as road stakeout, line stakeout, and eccentric measurement, and provides customizable code libraries with rapid coding measurement, enabling one-click code assignment and automatic drafting of identical codes to significantly improve office efficiency.
Technical Specification
| SPECIFICATIONS: | ||
| Angle Measurement | Accuracy | 1'' |
| Angle Measurement | Reading System | Absolute, continuous four-quadrant |
| Angle Measurement | Display Resolution | 0.1″/1″ |
| Angle Measurement | Angle Units | DEG 360°/GON 400/MIL 6.400 |
| Telescope | Magnification/ Field of View | 30X / 1°30′ |
| Telescope | Tube Length | 154mm |
| Telescope | Minimum focus Distance | 1.2m |
| Telescope | Reticle | 5 brightness levels adjustable |
| Telescope | Objective Aperture | 45mm (EDM: 50mm) |
| Telescope | Pointer | Red Laser dot |
| Tilt Sensor | Type | Dual axis, liquid photoelectric sensor |
| Tilt Sensor | Compensation Range/ Accuracy | ±4.0'/1″ |
| Distance Measurement Range | Single Prism Mode | 3500m |
| Distance Measurement Range | Reflectorless | 1000m |
| Distance Measurement Accuracy | Standard Prism Mode | ±1 mm+1 ppm |
| Distance Measurement Accuracy | Reflectorless | D<500m: ±2mm+2ppm D>500m: +5mm+2ppm |
| Measurement Time | Standard Prism Mode (Tracking/Fine) | 0.1 / 0.3 sec |
| Measurement Time | Reflectorless | 0.3-3 sec |
| Distance Measurement | Distance Unit | m/US ft/INT ft |
| Distance Measurement | Display Resolution | 1280×720 |
| Motorization | Technology | Red laser dot, 635 nm |
| Motorization | Max Rotation Speed | 60°/sec |
| Motorization | Rotation Time F1/F2 | 2.9 sec |
| APR | Centering Range | MediaTek G81, 4GB DDR4x + 64GB eMMC |
| APR | Time | 3-5 sec |
| APR | Search Range | ±1.5° (Support window search) |
| APR | AIM Accuracy | ±1mm @ 100m |
| PS | Search Range | 1.5-450m |
| PS | Search Time | Typically 90°: 3.5 s |
| PS | Angle | H: 360° V: ±18° |
| Laser Plummet | Laser Type | Red laser dot, 635nm |
| Laser Plummet | Accuracy | ±1.5mm at 1.5m |
| Level Vial Sensitivity | Plate Level | 30"/2 mm |
| Level Vial Sensitivity | Circular Level | 8'/2 mm |
| Environmental Conditions | Operating Temperature | -30℃ to +50℃ (-22°F to 122°F) |
| Environmental Conditions | Storage Temperature | -40°C to +70°C (-40°F to 158°F) |
| Environmental Conditions | Waterproof/Dustproof | IP55 |
| Environmental Conditions | Humidity | 95% non-condensing |
| Physical Specification | Dimensions | 217 x 198 x378 mm |
| Physical Specification | Weight (Battery and Tribrach Inclusive) | 7 kg |
| Electrical | Battery Voltage/Capacity/Type | Li-ion rechargeable battery ×2, 5400mAh |
| Electrical | Operating Time | Up to 6 hours |
| Electrical | Battery Charger | 110/220V, charging time 4h |
| Others | CPU | MTK6762 |
| Others | Display | 5.5-inch, TFT LCD screen, 720 x1280 px (2 displays) |
| Others | Keyboard | 17 keys x2 |
| Others | OS | Android 11 |
| Others | Memory | RAM: 4GB, ROM: 64GB |
| Others | Interface | RS232, USB Type-C (OTG), Micro SIM, TF Card |
| Others | Data Transfer | Long range communication 450m, WLAN, USB-OTG, Network 4G, Temperature and pressure sensor |
