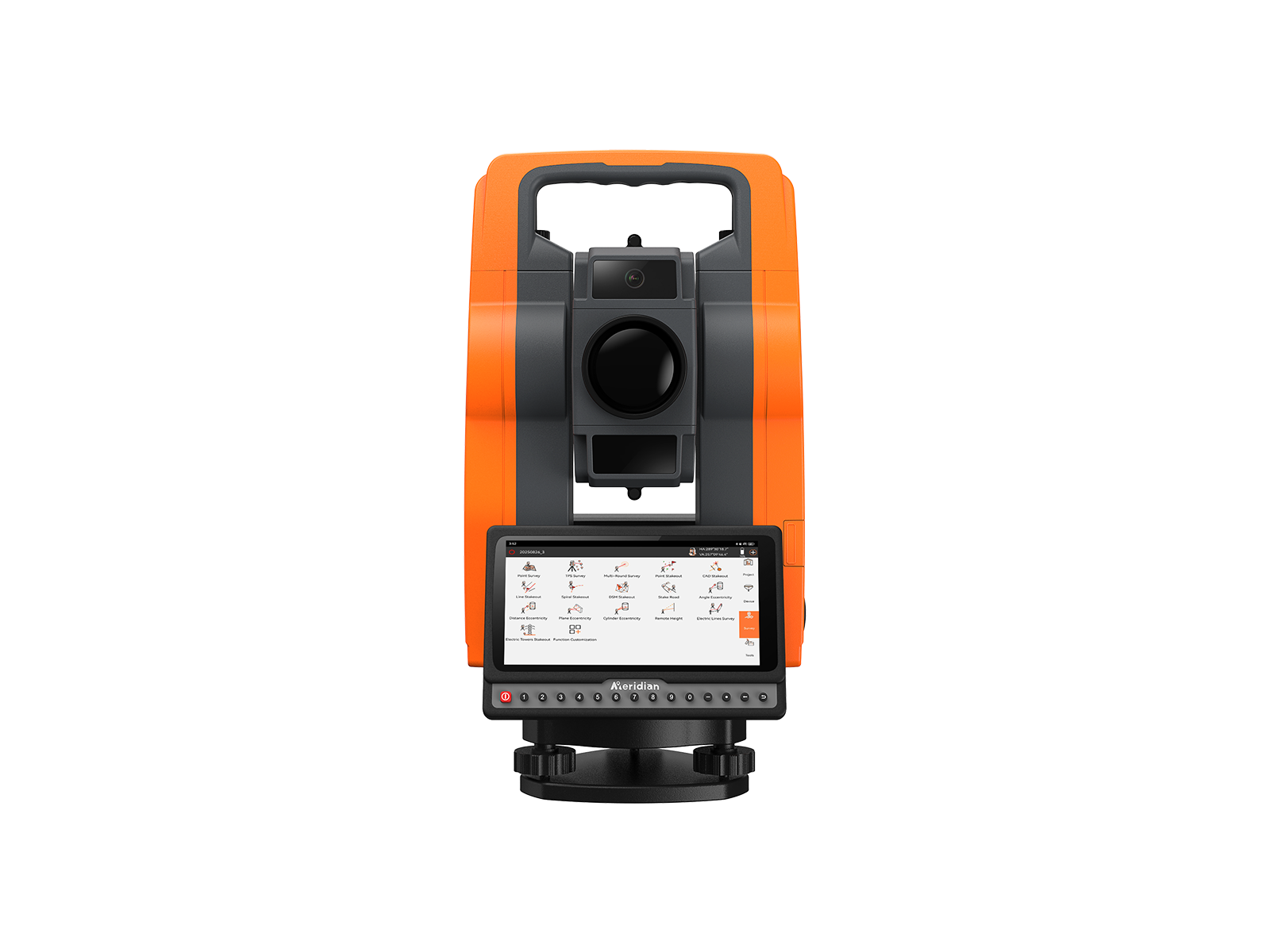

Meridian MTS-A1
Android Total Station
The MTS-A1 features a 6-inch HD touchscreen with Android OS and surveying software, equipped with a high-resolution camera to improve efficiency and accuracy, MTS-A1 offers high-quality, high-accurate and stable performance.
Precise Visual Stakeout
HD image guidance, with real-time image guidance, locate points effortlessly, rapidly, and accurately-making staking simpler and more efficient than ever.
CAD Stakeout
Powered by a high-performance CAD engine, lightning-fast drawing loading. Experience dynamically precise, visible staking- truly achieving What you design is what you see; what you see is what you get measured.
M-survey Software Operation
Command your total station from your palm.Replace complex instrument logic with intuitive mobile control, power lines and more. Dataauto-saves to mobile devices, seamlessly bridging field and office workflows.
Hot-swappable Battery system
Zero downtime power transition, featuring an integrated buffer battery and dual-battery control system, achieve uninterrupted operation during battery swaps, empowering continuous measurement without interruption.
Technical Specification
| Category | Specification | Details |
|---|---|---|
| Angle Measurement | Accuracy | 1″ / 2″ Optional |
| Reading System | Absolute, continuous four-quadrant | |
| Display Resolution | 0.1″ / 1″ | |
| Telescope | Magnification | 30x |
| Field of View | 1°30′ | |
| Minimum Focus Distance | 1.7 m | |
| Resolution | 0′ | |
| Pointer | Red laser dot | |
| Tilt Compensation | System | Dual axis |
| Working Range | ±4′ | |
| Resolution | 1″ | |
| Distance Measurement Range | Single Prism Mode | 4000 m |
| Reflector | 2000 m | |
| Non-Prism Mode | 1000 m | |
| Distance Measurement Accuracy | Standard Prism Mode | ±1 mm + 1 ppm |
| Reflectorless & Non-Prism | D < 500 m: ±2 mm + 2 ppm D > 500 m: +3 mm + 2 ppm | |
| Measurement Time | Standard Prism Mode | Tracking: 0.1 sec; Precise: 0.3 sec |
| Reflectorless | Fine: 0.7 s; Rapid: 0.5 s; Tracking: 0.3 s | |
| Level Vial Sensitivity | Tube Level | 30″ / 2 mm |
| Circular Level | 8′ / 2 mm | |
| Laser Plummet | Laser Type | Red laser dot, 635 nm |
| Accuracy | 1.5 mm (Instrument Height 1.5 m) | |
| Android Configuration | Android Platform | MediaTek G81, 4 GB DDR4x + 64 GB eMMC |
| Display Screen | 6 inch touch screen: 2 × 1280 × 720 (16:9) | |
| Communication | Interface | 1 × Nano SIM card, 1 × T card, Type-C (OTG), 1 × USB 2.0, 1 × USB |
| Wireless | Bluetooth 5.0, WiFi | |
| Environmental | Operating Temperature | -20℃ ~ +55℃ |
| Storage Temperature | -30℃ ~ +55℃ | |
| Waterproof / Dustproof | IP65 | |
| Electrical | Battery Voltage / Capacity / Type | Li-ion rechargeable battery, 7.2 V, 7000 mAh |
| Stakeout Camera | 8 MP AR camera | |
| Physical | Dimensions | 217 × 198 × 378 mm, 7 kg |
