Meridian MS70
Handheld LiDar Scanner
The MS70 Handheld LiDar Scanner is a groundbreaking tool that revolu tionizes 3D data collection. This lightweight device combines a 20° tilt mechanism, dual wide-angle cameras, and an integrated RTK module to accurately capture nprecedented detail and vibrant color scans. It Integrates advanced point cloud algorithms, enabling one-person opera tion to quickly obtain comprehensive color point cloud easily obtain true 3D information and complete spatial mapping.
One-Click Operation
The built-in RTK module allows for one-click operation, simplifying the scanning process and reducing setup time, no external antennas or 4G cards required. Meridian Lidar Studio for one-click point cloud genera tion and export.
Real-Time Colorization
Industry-leading color point cloud effects with real-time feedback. The standard software provides real-time feedback on data collection status and a live preview of color point clouds, ensuring no data is missed during scanning
Compact design, wider coverage
With a weight of only 1.0 kg, it is easy to carry and operate. Two 16 MP wide-angle fish-eye lenses and 20° tilt mechanism allows the scanner to capture full field-of-view coverage and highly detailed imagery, MS70 captures large amounts of data quickly, saving time and maintaining accuracy
Extended Battery Life and Fast Charging
3150 mAh batteries provide up to 150 minutes of continuous scanning each, ensuring extended operation in the field. Type-C PD-30W charging ensures an average charging time of just 1.5 hours, minimizing downtime.

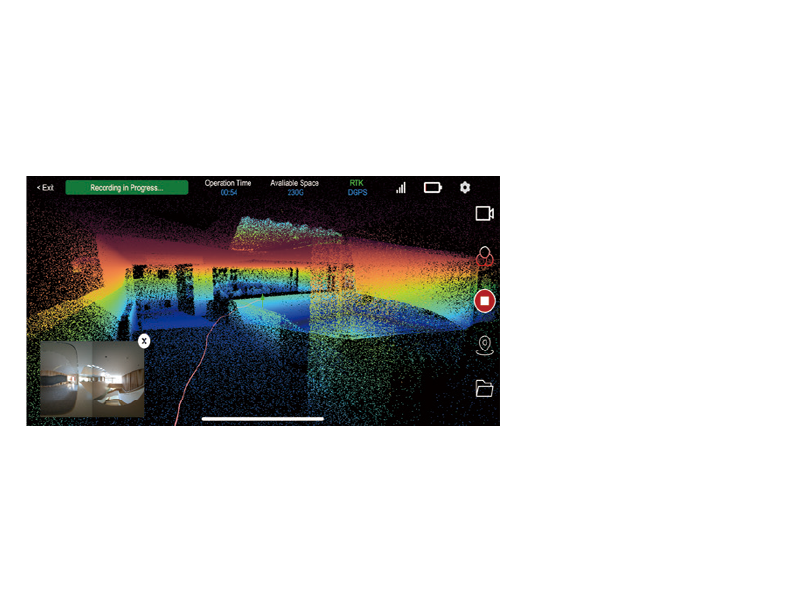

Meridian Lidar Go: Empowering Mobile 3D Scanning
Become a 3D scanning expert in minutes. Meridian Lidar Go lets you control the MS70 Slam Scanner with ease. Capture every detail in real-time color point clouds. Start scanning instantly with plug-and-play simplicity.
Meridian Lidar Studio: Advanced Desktop Processing
Generate high-quality point cloud data with one click. Meridian Lidar Studio processes your scans efficiently. Intuitive measurement and analysis with image and point cloud overlays. Transform your data into real-life reconstructions effortlessly.
Technical Specification
| Category | Specification | Details |
|---|---|---|
| System | RTK Performance | 0.8 cm + 1 ppm (H) 1.5 cm + 1 ppm (V) |
| Processing | Real-time processing Post processing | |
| Support Satellite | 7 satellites system, 24 channels | |
| Range Noise | ±1 cm | |
| Precision Indoor | ±1 cm | |
| Software | Point Cloud Thickness | ≤1 cm |
| Accuracy | Absolute Accuracy ≤ 5 cm; Relative Accuracy ≤ 1 cm | |
| Mobile App | Supports preview of color point clouds, Android compatibility | |
| Processing Software | Supports spatially correlated viewing of point clouds and panoramic | |
| Environment | Robustness | Designed for indoor and outdoor use |
| Temperature | Operating: -20 ~ +55℃ Storage: -20 ~ +60℃ | |
| IP Rating | IP54 | |
| LiDAR & Imaging | Camera | 16 MP × 2 |
| Camera FOV | 360 × 270° | |
| Laser Class | Class 1 / 905 nm | |
| LiDAR FOV | Horizontal 360° Vertical -7° ~ 52° | |
| Point Measurement Rate | 200,000 pts/sec | |
| Frequency | 10 Hz | |
| Range | 0.1 ~ 40 m @ 10% 0.1 ~ 70 m @ 80% | |
| Physical & Electrical | Weight | 1079 g with battery |
| Size | 110.5 × 140 × 313.3 mm with battery 110.5 × 114 × 143.1 mm mainframe | |
| Battery | 3150 mAh quick-release grip battery; max. 150 mins battery life for each | |
| Input | 14.4 V | |
| Charging | Type-C, PD-30 W; average 2 hr charging time | |
| Data Transfer | Format | .las, .pcd, .ply |
| Detachable Storage | TF Card, 256 GB, max 1 TB extendable | |
| Data Transfer | Wireless and USB 3.0 | |
| Operation | Support surveying pole connection |
